Provisioner Configuration Overview

The provisioner configuration file is a YAML document that defines the following:

• Global settings: Node annotations (and software license tokens coming soon)
• Node provisioners: Static, AWS, Slurm, PBS, and/or CoreWeave node provisioner definitions
• Conditional and Policy expressions: Hardware based resource allocation rules and user/job-based access controls

The documentation regarding the expression language can be found at the Expr Language Definition documentation. The complete specification for the provisioner configuration is available here.

After creating your provisioner configuration file you can apply it with the fuzzball cluster config set command like so:

$ fuzzball cluster config set ./provision-config.yaml

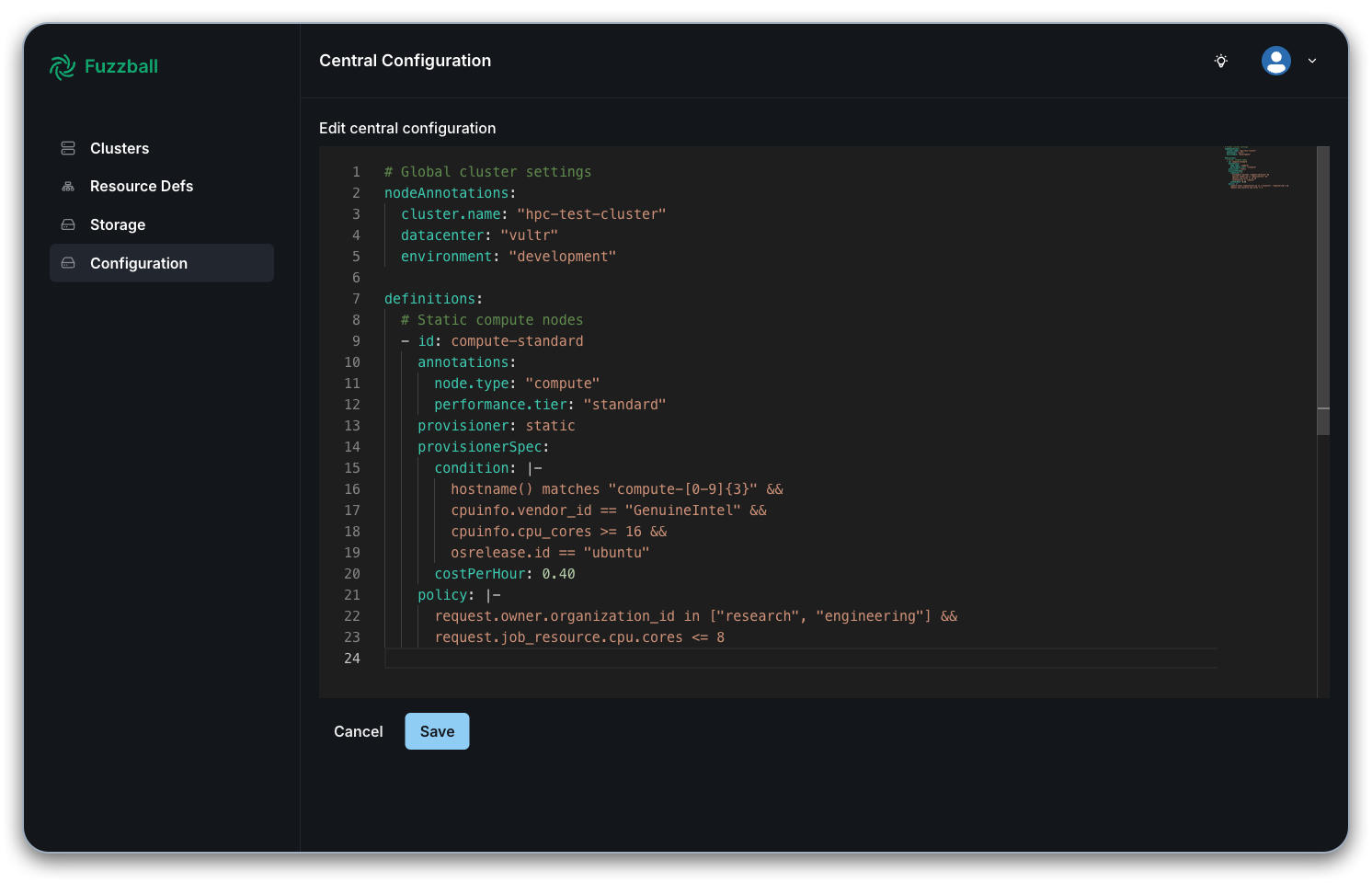

You can also add the provisioner configuration directly in the admin UI. First, navigate to the admin UI and enter your cluster admin credentials. This is usually hosted at the same URL as the Fuzzball UI, with the string ui being replaced by ui-admin. Then navigate to the “Configuration” tab on the left and use the text editor to create a provisioner configuration file following the YAML format and structure described above, including global settings, node provisioners, and conditional policy expressions.

The substrate daemon running on compute nodes must be restarted after applying changes to the provisioner configuration.

You can get the current configuration or view configuration at a specific revision like so:

$ fuzzball cluster config get

$ fuzzball cluster config get --revision 5

You can list configuration revisions with the following command.

$ fuzzball cluster config get --list-revisions

The fuzzball cluster config commands shown above also work against a Federate cluster. On Federate clusters, only the global settings (for example, scheduler options) in the configuration apply. Node provisioner definitions are not used on Federate clusters — Federate receives its node provisioner information from its registered Orchestrate clusters — so any definitions entries in a configuration applied to Federate are stored but ignored.

A node provisioner is a configuration that, for a chosen node provisioner backend, tells Fuzzball how to obtain a class of compute nodes with policy attached. All nodes obtained through a single node provisioner are expected to be functionally identical. Node provisioners are written as entries in the definitions: block of the provisioner configuration; each entry specifies the backend used to provision the hardware and the node resources those nodes provide.

When specifying the node resources for a node provisioner, you must group compute nodes by identical hardware specifications. Each node provisioner should represent nodes with the same CPU, memory, GPU, and network hardware configuration. Nodes with different hardware capabilities require separate node provisioners to ensure accurate resource matching and allocation. See Hardware Grouping Requirements for more information.

Each organization owns a signed compute policy grant listing the node provisioner definitions it may place workflows on. The scheduler consults an organization’s grant at placement time and refuses definitions the grant does not name.

Grants are managed automatically for the normal case:

• Backfill at upgrade. Every existing node provisioner definition is backfilled into every organization’s grant when the cluster upgrades, so placement continues unchanged with no operator action.
• New definitions added afterwards must be materialized into each organization’s grant through the admin AppendProvisionerDefinitions RPC before that organization can place work on them. A Federate can push a definition into every downstream Orchestrate in one call by invoking that RPC once per registered cluster.
• Fallback for internal and system jobs. When no definition’s own policy admits an internal or system job, Fuzzball falls back to unrestricted placement so critical work still runs, and emits a warning naming that fallback path so the missing policy can be corrected.

Regular cluster administrators do not need to interact with grants directly; the guard is there to keep placement decisions signed and auditable when definitions are curated centrally and delivered to many tenants.

You can specify static, AWS, Slurm, PBS, or CoreWeave as the backend for a node provisioner. The static backend configures Fuzzball to handle local provisioning itself without using a separate batch scheduler as a backend, while the other backends refer to cloud or batch scheduling systems.

Static provisioners define physical or pre-provisioned compute resources with condition-based matching. The static provisioner keyword allows you to additionally define specific conditions and policies that Fuzzball will use directly to provision hardware. Please see the reference section on the static provisioner for a complete specification.

AWS provisioners support dynamic instance provisioning with instance type expansion. The node resources for each instance type come from the AWS backend’s Node Resource Catalog, so you do not have to specify the hardware by hand. When using wildcard patterns (e.g., t3.*, c5.*), the system automatically expands these into individual node provisioners for each matching instance type. The ${spec.instanceType} placeholder in the definition ID is replaced with the actual instance type during expansion. Please see the reference section on the AWS provisioner for a complete specification.

Slurm provisioners integrate with existing Slurm clusters. This allows you to configure your cluster using Slurm’s tools and then leverage that configuration through Fuzzball. Please see the reference section on the Slurm provisioner for a complete specification.

PBS provisioners integrate with existing PBS clusters. This allows you to configure your cluster using the PBS tools and then leverage that configuration through Fuzzball. Please see the reference section on the PBS provisioner for a complete specification.

CoreWeave provisioners support dynamic instance provisioning on CoreWeave’s cloud infrastructure, optimized for GPU workloads. Fuzzball dynamically creates and destroys single-node NodePools on-demand based on workflow requirements. CoreWeave provisioners support specifying instance types and cost parameters. Please see the reference section on the CoreWeave provisioner for a complete specification.

OCI provisioners support dynamic instance provisioning on Oracle Cloud Infrastructure. Fuzzball creates and destroys OCI compute instances on demand based on workflow requirements, using the compute shape configured in the definition. Please see the reference section on the OCI provisioner for a complete specification.

On cloud backends (AWS, GCP, Azure, OCI), node hardware details come from the report a node sends when it boots. Until the first instance of a type boots, its node provisioner carries catalog data or a generated approximation — estimated CPU topology and memory, and only the device inventory the cloud API advertises. Hardware discovery replaces generated data with what the node actually reports — real topology, usable memory, and full device details — by booting one instance of the type, recording the node’s hardware report, and deleting the instance again. The most visible symptom of generated data is hardware-targeting workflows: for example, a workflow selecting a GPU by model (nvidia.com/gpu.model) cannot be scheduled on an instance type until its real hardware details are known.

Trigger discovery manually after adding definitions:

# Discover hardware for every definition that needs it
$ fuzzball node provisioner discover

# Discover hardware for specific definitions
$ fuzzball node provisioner discover gpu-l4 gpu-a100

Discovery runs in the background on the cluster; the command returns the instance types discovery was started for.

To run discovery automatically after every configuration update, set autoDiscover: true on the definition in the central configuration (see Hardware Discovery). Discovery instances are billable cloud instances, so automatic discovery is disabled by default.

Static provisioner conditions use expression language to match nodes based on system attributes. Conditions are evaluated by nodes at startup or when the configuration change. This allows you match jobs to nodes that provide a specific operating system or OS version, a specific type of CPU architecture or GPU model, a specific type of network adapter, etc. Please see the reference section on the static provisioner conditions for a complete specification.

Policies control which users and jobs can access specific node provisioners. Policies are evaluated for each allocation request and must return a boolean result. Please see the reference section on the policy expressions for a complete specification.

The following illustrates a full example provision definition YAML file. The file defines all four provision types and is only meant for illustrative purposes. Please see the exhaustive reference documentation for more information.

# Global cluster settings
nodeAnnotations:
  cluster.name: "hpc-cluster-prod"
  datacenter: "us-east-1"
  environment: "production"

softwareTokens:
  matlab: 50
  ansys: 25
  abaqus: 15

definitions:
  # Static compute nodes
  - id: compute-standard
    annotations:
      node.type: "compute"
      performance.tier: "standard"
    provisioner: static
    provisionerSpec:
      condition: |-
        hostname() matches "compute-[0-9]{3}" &&
        cpuinfo.vendor_id == "GenuineIntel" &&
        cpuinfo.cpu_cores >= 16 &&
        osrelease.id == "ubuntu"
      costPerHour: 0.40
    policy: |-
      request.owner.organization_id in ["research", "engineering"] &&
      request.job_resource.cpu.cores <= 32

  # GPU nodes for ML workloads
  - id: gpu-ml
    annotations:
      node.type: "gpu"
      gpu.type: "nvidia"
    provisioner: static
    provisionerSpec:
      condition: |-
        hostname() matches "gpu-[0-9]{2}" &&
        modalias.match("pci:v000010DEd*sv*sd*bc03sc*i*")
      costPerHour: 3.20
    policy: |-
      request.job_resource.devices["nvidia.com/gpu"] > 0 &&
      request.owner.organization_id == "ai-ml"

  # AWS spot instances for batch processing
  - id: aws-${spec.instanceType}-spot
    provisioner: aws
    provisionerSpec:
      instanceType: c5.*
      spot: true
    policy: |-
      request.job_annotations["cost.optimization"] == "enabled" &&
      request.job_ttl >= 1800 &&
      request.job_kind == "job"

  # example Slurm cluster integration
  - id: slurm-highmem
    provisioner: slurm
    ttl: 24000
    provisionerSpec:
      costPerHour: 1.50
      cpu: 32
      memory: "256GiB"
      partition: "highmem"
    policy: |-
      request.job_resource.mem.bytes >= (128 * 1024 * 1024 * 1024)

  # example PBS cluster integration
  - id: pbs-legacy
    provisioner: pbs
    ttl: 24000
    provisionerSpec:
      cpu: 16
      memory: "64GiB"
      gpus: 0
      queue: "legacy"
    policy: |-
      request.job_annotations["workload.type"] == "legacy"

  # CoreWeave dynamic provisioning for GPU workloads
  - id: coreweave-h100
    provisioner: coreweave
    ttl: 3600
    provisionerSpec:
      instanceType: "gd-8xh100ib-i128"
      costPerHour: 15.00
    policy: |-
      request.job_resource.devices["nvidia.com/gpu"] > 0 &&
      request.job_annotations["gpu.type"] == "h100"

The following example illustrates one way to configure a development environment that would leverage both the static and AWS provisioners.

nodeAnnotations:
  cluster.name: "dev-cluster"
  environment: "development"

definitions:
  # Development static nodes
  - id: dev-compute
    provisioner: static
    provisionerSpec:
      condition: |-
        hostname() matches "dev-[0-9]+" &&
        cpuinfo.cpu_cores >= 4
      costPerHour: 0.10
    policy: |-
      request.owner.organization_id == "development"

  # AWS development instances
  - id: aws-dev-${spec.instanceType}
    provisioner: aws
    provisionerSpec:
      instanceType: t3.*
      spot: true
    policy: |-
      request.job_ttl <= 7200 &&
      request.job_resource.cpu.cores <= 8

• All expressions are validated using the Expr language.
• Static conditions are evaluated at node startup and configuration changes.
• Policies are evaluated for each allocation request.
• Invalid expressions will prevent configuration from being applied.

• Use specific hostname patterns in static conditions to avoid unnecessary evaluations.
• Combine multiple conditions using logical operators rather than creating separate definitions.
• Test complex expressions in a development environment before applying to production.

• Use restrictive policies to prevent unauthorized access to expensive resources.
• Implement organization-based access controls.
• Regularly audit policy expressions for potential bypasses.
• Consider resource limits in policies to prevent abuse.

Node provisioners must group nodes by identical hardware specifications. This ensures accurate resource allocation and prevents scheduling conflicts.

Correct hardware grouping is important for the following reasons:

• Accurate Resource Reporting: Jobs receive consistent resource allocations within a hardware group.
• Cost Management: Different hardware types have different operational costs.
• Performance Predictability: Similar hardware provides consistent performance characteristics.
• Scheduling Efficiency: The scheduler can make better placement decisions with homogeneous groups.
• Resource Policies: Access controls can be tailored to specific hardware capabilities.

definitions:
  # Group 1: Intel Xeon nodes with 32 cores, 128GB RAM
  - id: intel-compute-32c-128g
    provisioner: static
    provisionerSpec:
      condition: |-
        hostname() matches "compute-[01-20]" &&
        cpuinfo.vendor_id == "GenuineIntel" &&
        cpuinfo.cpu_cores == 32 &&
        cpuinfo.model_name matches "*Xeon*"
      costPerHour: 0.40

  # Group 2: Intel Xeon nodes with 64 cores, 256GB RAM
  - id: intel-compute-64c-256g
    provisioner: static
    provisionerSpec:
      condition: |-
        hostname() matches "compute-[21-40]" &&
        cpuinfo.vendor_id == "GenuineIntel" &&
        cpuinfo.cpu_cores == 64 &&
        cpuinfo.model_name matches "*Xeon*"
      costPerHour: 0.80

  # Group 3: AMD EPYC nodes with 32 cores, 128GB RAM
  - id: amd-compute-32c-128g
    provisioner: static
    provisionerSpec:
      condition: |-
        hostname() matches "amd-[01-15]" &&
        cpuinfo.vendor_id == "AuthenticAMD" &&
        cpuinfo.cpu_cores == 32 &&
        cpuinfo.model_name matches "*EPYC*"
      costPerHour: 0.35

  # Group 4: GPU nodes with NVIDIA V100s
  - id: gpu-v100-nodes
    provisioner: static
    provisionerSpec:
      condition: |-
        hostname() matches "gpu-[01-10]" &&
        modalias.match("pci:v000010DEd00001DB4sv*sd*bc03sc*i*")
      costPerHour: 3.20

  # Group 5: GPU nodes with NVIDIA A100s
  - id: gpu-a100-nodes
    provisioner: static
    provisionerSpec:
      condition: |-
        hostname() matches "gpu-[11-20]" &&
        modalias.match("pci:v000010DEd000020F1sv*sd*bc03sc*i*")
      costPerHour: 4.50

definitions:
  # INCORRECT: Do not mix different hardware in one definition
  - id: mixed-compute-nodes
    provisioner: static
    provisionerSpec:
      condition: |-
        # This condition matches nodes with different hardware specs
        hostname() matches "compute-[0-9]+" ||
        hostname() matches "amd-[0-9]+" ||
        hostname() matches "gpu-[0-9]+"
      costPerHour: 0.50  # Single cost for different hardware types

Group nodes based on these key characteristics.

See the reference section on Common Modalias Patterns for information about obtaining the proper modalias for a given PCI device.

# CPU Specifications
cpuinfo.vendor_id     # Intel vs AMD
cpuinfo.cpu_cores     # Core count differences
cpuinfo.model_name    # CPU generation/model

# Memory Configuration
# (Check via system commands, not available in expressions)
# - Total memory capacity
# - Memory speed/type (DDR4 vs DDR5)

# GPU Hardware
modalias.match()      # GPU vendor/model detection
# - GPU memory capacity
# - GPU architecture (V100, A100, RTX, etc.)

# Network Hardware
modalias.match()      # Network interface detection
# - Ethernet speed (1Gb, 10Gb, 25Gb)
# - InfiniBand capabilities
# - RDMA support

# Storage Configuration
# - Local SSD vs spinning disk
# - NVMe vs SATA interfaces
# - Storage capacity tiers

# Template for hardware grouping naming convention
definitions:
  - id: {cpu_vendor}-{core_count}c-{memory_gb}g-{special_features}
    # Examples:
    # intel-32c-128g-standard
    # amd-64c-256g-highmem
    # intel-32c-128g-v100x4
    # amd-32c-128g-a100x8-infiniband
